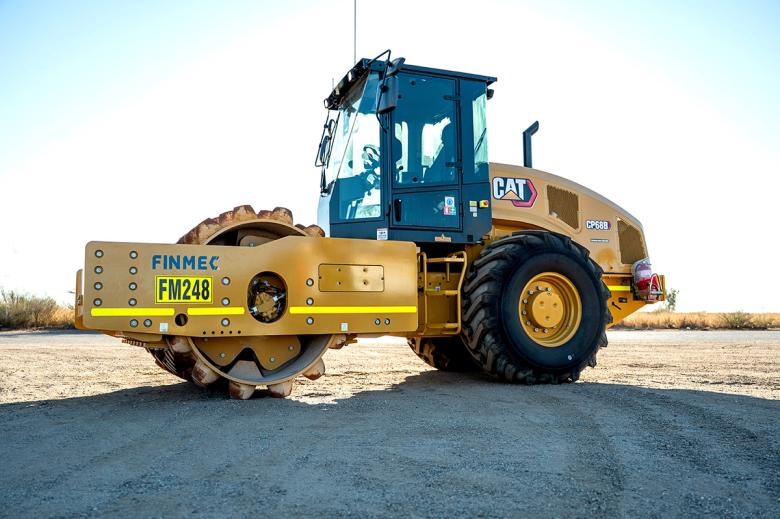

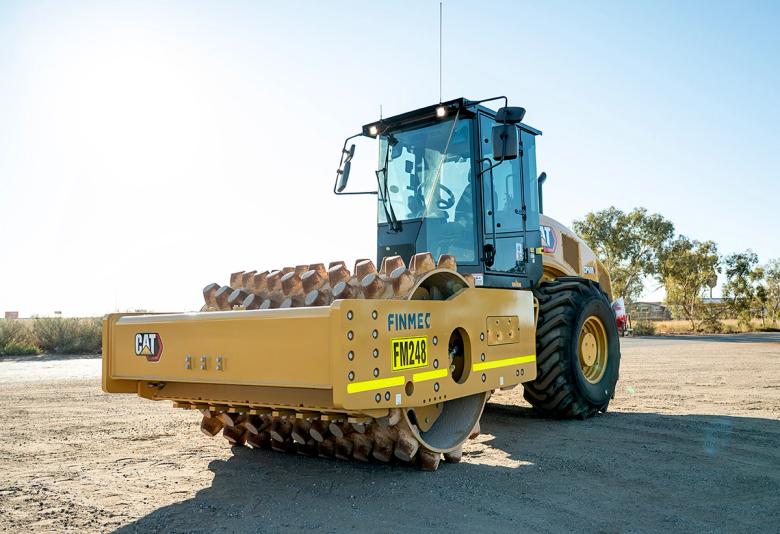

CAT CS68B Padfoot Compactor
A heavy-duty CAT padfoot compactor designed for high-performance soil compaction across civil, mining and large-scale earthworks. The padfoot drum delivers superior penetration and density on cohesive materials such as clay, silt and mixed soils, making it ideal for foundation preparation, embankment works and road construction.
Description
The CAT Padfoot Compactor provides excellent traction, drum performance and compaction depth thanks to its high-efficiency vibratory system and robust padfoot drum. Built for productivity, it features strong pushing power, precise control and an operator-focused cab designed for all-day comfort. Full site compliance, safety features and communication equipment are included to ensure seamless operation on Pilbara and remote-site projects.
Features
Heavy-Duty Padfoot Drum
Designed for effective compaction of cohesive soils including clay, silt and mixed materials.
High-Force Vibratory System
Delivers deep, consistent compaction to achieve required density efficiently.
Excellent Traction & Stability
Provides confident operation on uneven, soft or challenging ground conditions.
ROPS-Certified Operator Cab
Spacious cab with ergonomic controls designed for safety and all-day comfort.
Optional Smooth Shell Kit
Allows conversion for granular soil applications when required.
Enhanced Safety & Visibility
Rear-vision camera improves awareness around the machine during operation.
Proven CAT Powertrain
Reliable engine and drivetrain built to perform in harsh civil and mining environments.
Site Compliance Features
• LED Beacon • Emergency Stop • Battery Isolator • Reverse Alarm • Window Tint • Seat Cover • Fire Extinguisher • UHF Radio • Full Site Compliance
Specifications
Operating Weight
approx. 14325 kg
Drum Type
Padfoot
Compaction Width
2,134 mm
Drum Diameter (Over Pads)
approx. 1,550 mm
Engine
CAT diesel engine
Engine Power
approx. 117 kW
Travel Speed
up to 11.4 km/h
Overall Width
approx. 2.5 m
Overall Length
Approx 6.0
OverallWidth
2.3m
Vibratory Frequency
30 Hz
Centrifugal Force (Max)
301 kN
Fuel Capacity
242 L
