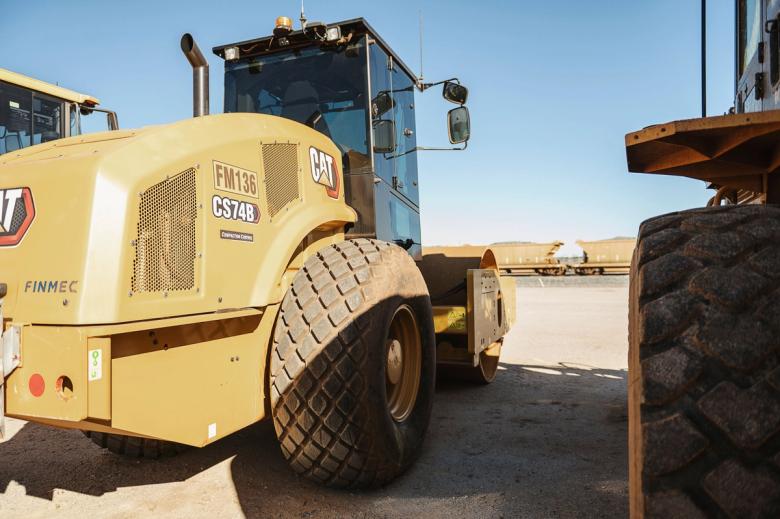

Caterpillar CS74B Vibratory Soil Compactor

Short & Long Term Leasing Available

Short & Long Term Leasing Available A high-performance smooth-drum compactor built for heavy-duty granular-soil compaction — featuring advanced vibration and compaction control technologies, excellent operator comfort, and optimum efficiency for large scale civil, quarry or road-base works.

Description

The CS74B offers exceptional compaction capability with its smooth drum and pod-style vibratory system. Equipped with an operator-friendly cab (or ROPS/FOPS canopy option), integrated Eco-mode and optional compaction-metering technology, this machine is engineered for high productivity with lower operating cost.

Features

Heavy-Duty Performance

Smooth drum with 2,134 mm width for wide coverage; high centrifugal force vibratory system to achieve deep, uniform compaction.

Advanced Technology

Includes pod-style eccentric weights with maintenance intervals up to 3 years/3,000 hours; optional machine drive power (MDP) and GNSS mapping features for process control.

Operator Safety & Comfort

Cab or canopy options with tiltable steering column, LCD display console, excellent visibility, and automatic vibration control (Auto-Vibe) for uniform results.

Site Compliance Features

LED Beacon Emergency Stop Battery Isolator Reverse Alarm Window Tint Seat Cover Full Site Compliance

Specifications

Operating Weight (with Cab)

16,000 kg

Drum Weight (with Cab)

10,630 kg

Compaction Width

2,134 mm

Drum Diameter

1,534 mm

Ground Clearance

437 mm

Maximum Travel Speed

11.4 km/h

Engine Model

Cat C7.1 (gross power 129.5 kW / 173.7 hp)

Engine Power

129.4 kW (174 hp)

Travel Speed

11.4 km/h

Overall Length

6.1 m

Overall Width

2.3 m

Vibratory Frequency

28 Hz

High Amplitude

2.1 mm

Centrifugal Force (Max)

335 kN

Fuel Capacity

332 L
