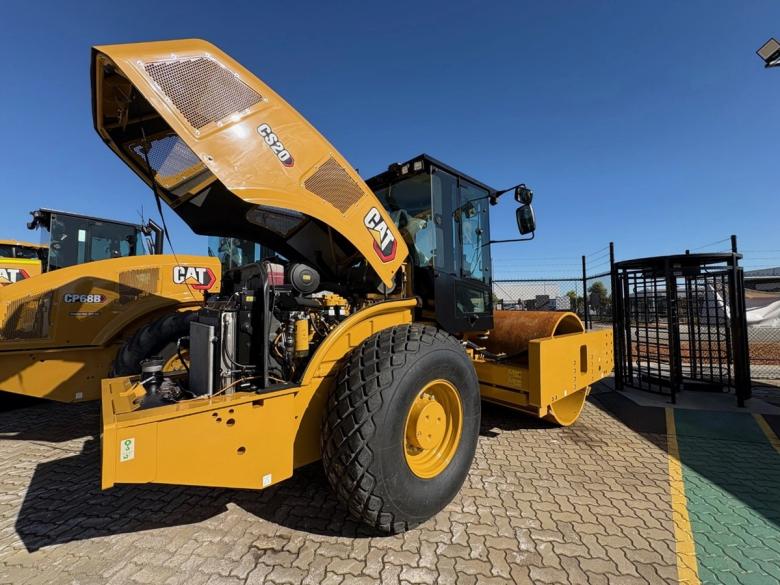

CS20 Vibratory Soil Compactor
Short & Long-Term Hire Available A versatile, high-performance smooth-drum soil compactor designed for civil, construction and road-base applications. The CS20 delivers consistent, reliable compaction across granular soils and can be adapted for cohesive materials with an optional padfoot shell kit. Built with a dependable propel system, operator-focused cab, and advanced compaction technology, this machine is designed to increase productivity and reduce rework on site.
Description
The CS20 Vibratory Soil Compactor features a 2,134 mm smooth drum and integrated compaction measurement technology that helps operators reach target density faster. On-board systems indicate when specifications are met, removing guesswork, minimising unnecessary passes, and improving overall job efficiency. A ROPS-certified cab ensures operator safety, while the rear-vision camera enhances visibility around the machine. The pivoting seat, ergonomic controls, tiltable steering console, and UHF radio create a comfortable, compliant, and communication-ready work environment.
Features
Wide Compaction Coverage
2,134 mm smooth drum for broad, efficient compaction.
Versatile Soil Capability
Optional padfoot shell kit for cohesive soil applications.
Intelligent Compaction Control
Advanced on-board compaction measurement technology.
Efficient Propel System
Reliable drive system for improved performance and fuel efficiency.
Enhanced Operator Awareness
Rear-vision camera for increased safety and visibility.
ROPS-Certified Cab
Ergonomic layout designed for comfort and protection.
Ergonomic Seating
Pivoting operator seat with integrated controls.
Adjustable Steering Console
Tiltable steering console for improved operator comfort.
UHF Radio Installed
Integrated communication for safe site operation.
Site Compliance Features
Full Site Specification Meets mining and civil safety requirements. Window Tint Reduced glare and improved cab comfort. Seat Cover Durable protection for operator seating. Fire Extinguishers Installed as standard for safety compliance. Battery Isolator Mandatory shutdown and maintenance safety control.
Specifications
Operating Weight:
20,220 kg
Drum Width
2,134 mm
Drum Diameter
1,534 mm
Engine
Cat C7.1
Engine Power
130 kW (174 hp)
Travel Speed
11.4 km/h
Overall Length
6.1 m
Overall Width
2.3 m
Vibratory Frequency
28 Hz
High Amplitude
2.1 mm
Centrifugal Force (Max)
335 kN
Fuel Capacity
332 L
