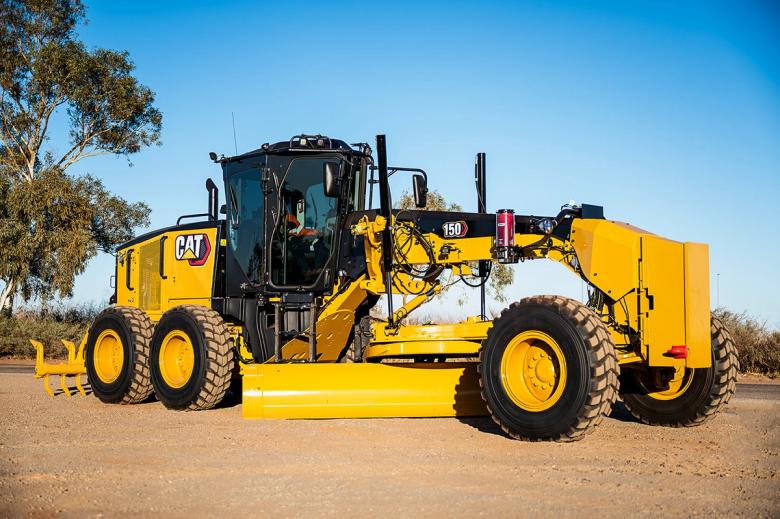

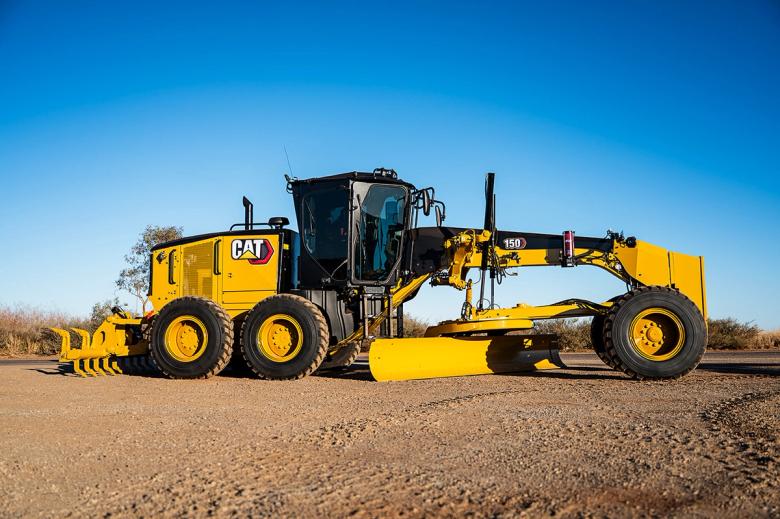

Cat 150 Motor Grader
With the legendary Cat® motor grader pedigree, the CAT 150 is built for precision, performance, and reliability on every job. Designed for high productivity and operator comfort, this machine delivers smooth control, exceptional grading accuracy, and long-lasting durability.
Description
Equipped with advanced joystick controls to reduce operator fatigue and a comprehensive range of technologies to boost efficiency, the CAT 150 sets the benchmark for modern earthmoving operations. Perfect for road maintenance, construction, and mine site applications where consistency and power matter most.
Features
Joystick Controls
Reduce fatigue and improve accuracy with responsive, low-effort joystick steering.
Advanced Productivity Technologies
Equipped with optional grade control systems to enhance accuracy and efficiency.
Operator Comfort
Quiet, spacious cab with ergonomic design and adjustable controls for all-day comfort.
Net Power
149 kW (200 hp)
Torque Rise
39%
Cat Grade with Cross Slope
An optional system that automatically controls one side of the blade to maintain accurate cross slopes.
VisionLink®
A cloud-based platform for fleet management that provides machine location, fuel usage, idle time, and other performance data.
Secondary Steering System
Automatically engages in case of steering pressure loss to allow the operator to steer the machine to a stop.
Operator Presence Monitor
Engages the parking brake and disables hydraulics when the operator is not in the seat.
Circle Drive Slip Clutch
Protects the drawbar, circle, and moldboard from shock loads.
Blade Lift Accumulators
Absorb impact loads by allowing vertical blade movement.
Specifications
Length
10.14
Height
3.31
Transport Width
2.81M
Mouldboard Width
3.7M
Engine
Cat® C9.3 ACERT™ – Tier 4 Final
Power
Up to 272 hp (203 kW)
Operating Weight
19,935 kg
Blade Width
3.7 m
Transmission
8 Forward / 6 Reverse Powershift with APECS
Top Speed
46.6 km/h (Forward)
Turning Radius
7.8 m (outside front tires)
Fuel Capacity
394 L
Cab Features
Air-conditioned, tinted windows, adjustable suspension seat
Safety Equipment
UHF radio, fire extinguishers (1 kg internal, 9 kg external)
Compliance
Site compliant
