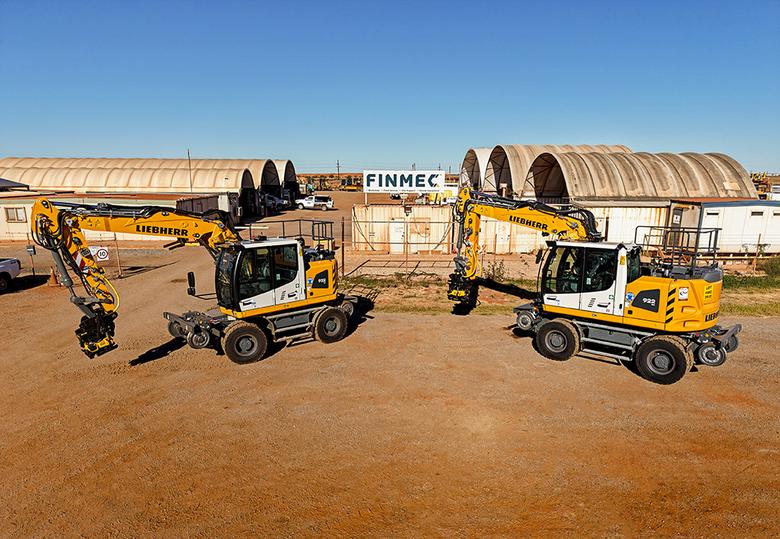

Liebherr A 922 Rail (Litronic)

Short & Long Term Leasing Available

Short & Long-Term Hire Available A specialised road-rail excavator engineered for dual-mode use on both road and rail tracks — offering robust performance, precision, and adaptability for rail infrastructure, track maintenance and civil works projects. The A 922 Rail combines a high-capacity excavator base with rail travel drive capability and is built for demanding environments.

Description

The A 922 Rail features a 120 kW (163 hp) powertrain, multiple undercarriage variants (including rail wheels) and independent hydraulic circuits capable of powering attachment tools while maintaining excellent mobility on rail and road. Its dual-mode design allows full performance across rail maintenance or track-renewal applications, while its service-oriented layout means maintenance access is simplified and downtime reduced.

Features

High-performance engine for demanding rail work

A powerful 120 kW / 163 hp engine delivers the output needed for high productivity on rail and road, ensuring fast cycle times and reliable performance in tough conditions.

Advanced hydraulic system for strong attachment power

Dual variable-displacement hydraulic pumps provide 2 × 220 L/min, supplying ample oil flow so work tools operate with full power, independent of travel or upperstructure swing movements.

Flexible rail and undercarriage configurations

Customisable undercarriage options—including rail wheels, narrow gauge, broad gauge and tyre-to-rail solutions—allow the machine to be adapted for different rail standards and jobsite requirements worldwide.

Optimised counterweight and compact rear design

A redesigned, high load-bearing counterweight combined with a compact rear dimension (2,000 mm swivel radius) offers excellent stability while maintaining a short tail swing, ideal for tight rail corridors and confined worksites.

Operator-focused, ROPS-certified cab

The spacious cab is ROPS-certified and designed for comfort and safety, featuring excellent all-round visibility supported by rear and side cameras, as well as ergonomic controls to reduce fatigue and support precise operation over long shifts.

Site Compliance Features

LED Beacon Improves visibility for surrounding personnel and equipment. Emergency Stop Allows instant shutdown in critical situations. Battery Isolator Provides safe lockout for maintenance and site compliance. Reverse Alarm Ensures audible warning during reversing operations. Fire Extinguisher Installed for immediate response to fire risks. Window Tint Reduces glare and enhances operator comfort. Seat Covers Protects seating surfaces in harsh working conditions. UHF Radio Supports clear communication across busy worksites. Full Site Compliance Meets standard mining and civil contractor safety requirements

Specifications

Operating Weight

20,400 – 23,400 kg

Engine Output (ISO 9249)

120 kW / 163 hp

Emission Stage

V

Backhoe Bucket Capacity

0.24 – 0.95 m³

Grab Capacity

0.08 – 0.54 m³

Hydraulic Pump Delivery

2 × 220 L/min
