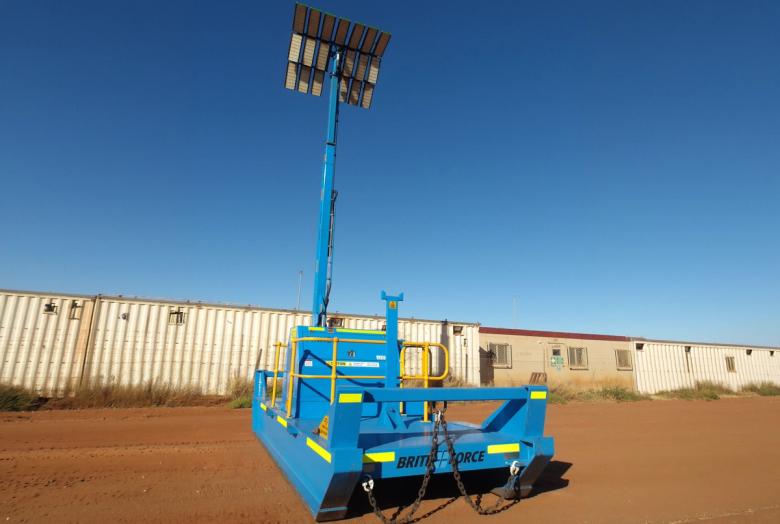

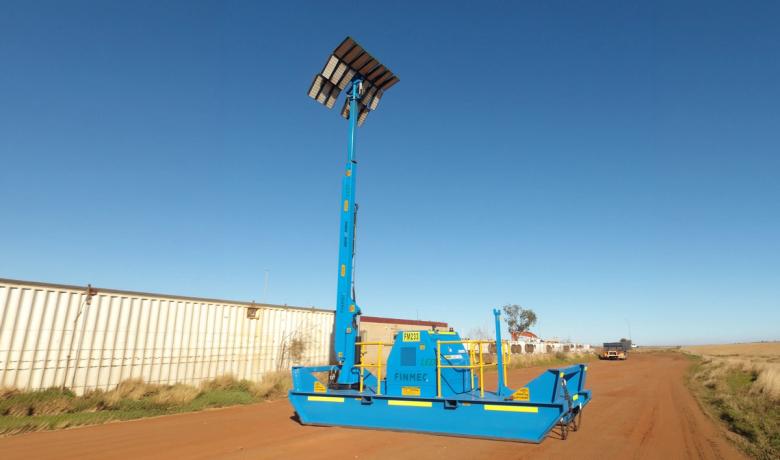

Briteforce LEDskid 7.6K Mobile Lighting Tower

Description

Built for remote and high-demand worksites, the Briteforce LEDskid 7.6K combines 19 × 400W Briteforce OctaLED400 LED lights with a fully hydraulic 12-metre mast to provide powerful illumination across mining operations, workshops, laydown areas and other large work zones. Powered by a Yanmar 3TNV84T 3-cylinder diesel engine, the unit features a 1,000-litre fuel tank and stated fuel consumption of approximately 2.7 litres per hour, supporting extended operation between refuelling. The lighting system can be positioned using 300° hydraulic mast rotation, 120° hydraulic light bar rotation and 90° light bar tilt, allowing operators to direct illumination according to site requirements. Purpose-built for mining environments, the LEDskid 7.6K features a rugged mine-spec skid base and cabin, certified lifting points, heavy-duty access features and integrated fail-safe systems. Available as part of Finmec's Port Hedland hire fleet, the Briteforce LEDskid 7.6K provides a practical mobile lighting solution for mining, civil and industrial projects throughout the Pilbara.

Features

High-Output LED Lighting

Fitted with 19 × 400W Briteforce OctaLED400 LED lights, providing efficient, high-output illumination for large mining and industrial work areas.

12-Metre Hydraulic Mast

A fully hydraulic multi-stage mast extends to 12 metres, providing elevated lighting coverage across operational areas, workshops and worksites.

Adjustable Lighting Coverage

Features 300° hydraulic mast rotation, 120° hydraulic light bar rotation and 90° light bar tilt for flexible positioning and site-specific lighting coverage.

Extended Operating Capacity

A 1,000-litre fuel tank combined with stated fuel consumption of approximately 2.7 litres per hour supports extended operation in remote and continuous-use environments.

Mine-Spec Construction

Built with a rugged mine-spec skid base and cabin, heavy-duty push rails, hand railing and an access gate for demanding mining and industrial conditions.

Integrated Safety Systems

Includes an emergency stop, lockable battery isolator and fail-safe systems for engine high temperature, low oil pressure, radiator low coolant and electrical protection.

Site Mobilisation

Four certified lifting points, rated towing chains and replaceable skid strips assist with lifting, positioning and relocation around site.

Automatic Operation

An automatic start-stop timer with nine programmable settings and engine auto start supports scheduled lighting operations.

Specifications

Engine

Yanmar 3TNV84T 3-cylinder diesel

Lighting

19 × 400W Briteforce OctaLED400 LED lights

Maximum Mast Height

12 m

Mast Rotation

300° hydraulic slew drive

Light Bar Rotation

120° hydraulic slew drive

Light Bar Tilt

90° – 12V DC linear actuator

Fuel Tank Capacity

1,000 L

Fuel Consumption

Approx. 2.7 L/hr

Radiator

50°C

Air Cleaner

Donaldson heavy-duty air cleaner

Wind Load Certification

Certified to 100 km/h at full mast height

Lifting Points

4-point certified lifting facility on base

Control Panel

Easy-to-operate control panel

Instrumentation

Digital hour meter

Operating Timer

Auto start-stop timer with 9 programmable settings

Access

Hand railing and access gate
